Augmentation Guide

Current Augementations

• background objects (simple shapes and everyday objects)
• rotation, translation
• other screws
• blur (not active)
• noise (not active)

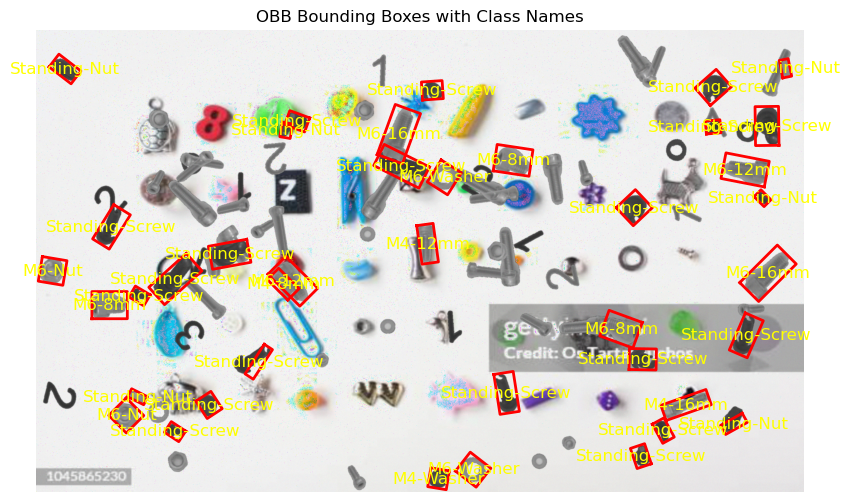

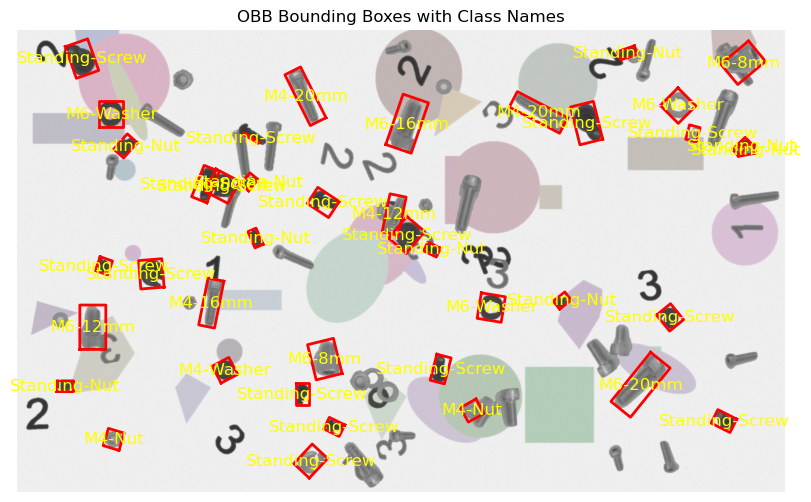

Example of generated images

Functions

create_distrubance_Canvas(mask_dir='disturbance_masks', number_generated_objects=30)

Create images with screws.

Parameters:

Name	Type	Description	Default
mask_dir	str	Directory containing the mask images	'disturbance_masks'
number_generated_objects	int	Number of screws/nuts/washers (that are not a class) to be placed in the new image	30

Returns: np.ndarray: The generated screw canvas.

Source code in image_creation.py

def create_distrubance_Canvas(mask_dir='disturbance_masks', number_generated_objects=30):
    """Create images with screws.

    Args:
        mask_dir (str): Directory containing the mask images
        number_generated_objects (int): Number of screws/nuts/washers (that are not a class) to be placed in the new image
    Returns:
        np.ndarray: The generated screw canvas.
    """
    # 1) Get mask image paths and names
    mask_paths = sorted(glob.glob(os.path.join(mask_dir, '*.png')))
    mask_names = [os.path.basename(path) for path in mask_paths]

    # 2) Create an empty RGB image of size 3076 x 1852
    canvas_h, canvas_w = 1852, 3076
    canvas = np.zeros((canvas_h, canvas_w, 3), dtype=np.uint8)

    # 3) Choose random masks, randomly position and rotate them in the image
    num_masks = number_generated_objects
    chosen_indices = random.choices(range(len(mask_paths)), k=num_masks)
    placed_info = []

    for idx in chosen_indices:
        mask_path = mask_paths[idx]
        mask_name = mask_names[idx]
        mask_img = io.imread(mask_path)
        # Ensure mask is RGB
        if mask_img.ndim == 2:
            mask_img = np.stack([mask_img]*3, axis=-1)
        elif mask_img.shape[2] == 4:
            mask_img = mask_img[..., :3]
        mask_h, mask_w, _ = mask_img.shape

        # Random rotation
        angle = random.uniform(0, 360)
        rotated_mask = rotate(mask_img, angle, resize=True, preserve_range=True).astype(np.uint8)
        rot_h, rot_w, _ = rotated_mask.shape

        # Random position
        max_y = canvas_h - rot_h
        max_x = canvas_w - rot_w
        if max_y < 0 or max_x < 0:
            continue  # skip if mask doesn't fit

        rand_y = random.randint(0, max_y)
        rand_x = random.randint(0, max_x)

        # Place mask on canvas using the actual intensity values
        for c in range(3):
            canvas[rand_y:rand_y+rot_h, rand_x:rand_x+rot_w, c] = np.maximum(
                canvas[rand_y:rand_y+rot_h, rand_x:rand_x+rot_w, c],
                rotated_mask[..., c]
            )

    return canvas

create_screwImage(mask_dir='Masks', ouput_dir='generated_ImageLabel', image_name='generated_image', number_generated_objects=40, number_generated_otherScrews=45, number_generated_shapes=10, simpleBackground=False, ImageSave=False, Png=True)

Create images with screws.

Parameters:

Name	Type	Description	Default
mask_dir	str	Directory containing the mask images	'Masks'
label_dir	str	Directory to save label and image file	required
output_dir	str	Directory to save the generated images	required
image_name	str	Name of the generated image and label file	'generated_image'
number_generated_objects	int	Number of screws/nuts/washers to be placed in the new image	40
number_generated_otherScrews	int	Number of other screws/nuts/washers to be placed in the new image	45
number_generated_shapes	int	Number of random shapes to be placed in the new image	10
simpleBackground	bool	Whether to add a simple white background (True) or with random non technical objectes (False)	False
ImageSave	bool	Whether to save the generated image	False
Png	bool	Whether to save the generated image as PNG (True) or JPG (False)	True

Returns: np.ndarray: The generated screw image.

Source code in image_creation.py

def create_screwImage(mask_dir='Masks', ouput_dir='generated_ImageLabel', image_name = 'generated_image', number_generated_objects=40, number_generated_otherScrews=45, number_generated_shapes=10, simpleBackground=False, ImageSave=False, Png=True):
    """Create images with screws.

    Args:
        mask_dir (str): Directory containing the mask images
        label_dir (str): Directory to save label and image file
        output_dir (str): Directory to save the generated images
        image_name (str): Name of the generated image and label file
        number_generated_objects (int): Number of screws/nuts/washers to be placed in the new image
        number_generated_otherScrews (int): Number of other screws/nuts/washers to be placed in the new image
        number_generated_shapes (int): Number of random shapes to be placed in the new image
        simpleBackground (bool): Whether to add a simple white background (True) or with random non technical objectes (False)
        ImageSave (bool): Whether to save the generated image
        Png (bool): Whether to save the generated image as PNG (True) or JPG (False)
    Returns:
        np.ndarray: The generated screw image.
    """
    start_time = time.time()

    # setput image generation
    os.makedirs(ouput_dir, exist_ok=True)
    label_path = os.path.join(ouput_dir, image_name+'.txt') #  Label file path
    if Png:
        generatied_imagePath = os.path.join(ouput_dir, image_name+'.png')
    else:
        # If not PNG, save as JPG
        generatied_imagePath = os.path.join(ouput_dir, image_name+'.jpg')

    #step1_start = time.time()
    # 1) Create the screw canvas and label
    screw_canvas = create_screws_CanvasAndLabel(mask_dir, label_path, number_generated_objects)
    #step1_end = time.time()
    #print(f"Step 1 (create_screws_CanvasAndLabel) took: {step1_end - step1_start:.2f} seconds")

    #step2_start = time.time()
    # 2) Create a background image with random shapes
    if simpleBackground:
            background_image = bg_creation.create_simpleBackground_image(num_shapes=number_generated_shapes)
    else:
        background_image = bg_creation.create_ObjectBackground_image(background_path='Backgrounds')
    #step2_end = time.time()
    #print(f"Step 2 (create background canvas) took: {step2_end - step2_start:.2f} seconds")


    # step2_5_start = time.time()
    # 2.5) Add other screws/nuts/washers to the background image
    disturbance_canvas = create_distrubance_Canvas(mask_dir='disturbance_masks', number_generated_objects=number_generated_otherScrews)
    # Both disturbance_canvas and background_image are RGB, so blend per channel
    mask = disturbance_canvas.sum(axis=-1, keepdims=True) > 0
    background_image = np.where(mask, disturbance_canvas, background_image)
    #step2_5_end = time.time()
    #print(f"Step 2.5 (create and add other screws to backgraound canvas) took: {step2_5_end - step2_5_start:.2f} seconds")

    # Step 3a: Integrate the background image with the canvas
    #step3a_start = time.time()
    # Both blending_mask and canvas are RGB images
    blending_mask = np.any(screw_canvas > 0, axis=-1, keepdims=True)
    blended_image = np.where(blending_mask, screw_canvas, background_image)
    #step3a_end = time.time()
    #print(f"Step 3a (add screw canvas to background canvas) took: {step3a_end - step3a_start:.2f} seconds")

    # # Step 3b: Apply Gaussian smoothing
    # step3b_start = time.time()
    # blur_intensity = np.random.uniform(0.5, 2)  # Random blur intensity
    # ksize = int(6 * blur_intensity) | 1         # Ensure kernel size is odd
    # blended_image = cv2.GaussianBlur(blended_image, (ksize, ksize), blur_intensity)
    # step3b_end = time.time()
    # print(f"Step 3b (smoothing) took: {step3b_end - step3b_start:.2f} seconds")

    # # Step 3c: Add random noise
    # step3c_start = time.time()
    # blended_image = blended_image.astype(np.float32)  # Convert to float for noise addition
    # noise = np.random.normal(0, 5, blended_image.shape)
    # blended_image += noise
    # np.clip(blended_image, 0, 255, out=blended_image)
    # blended_image = blended_image.astype(np.uint8)
    # step3c_end = time.time()
    # print(f"Step 3c (adding noise) took: {step3c_end - step3c_start:.2f} seconds")



    # 3) Save the image
    if ImageSave:
        io.imsave(generatied_imagePath, blended_image)
        print(f"Image saved to {generatied_imagePath}")

    end_time = time.time()
    print(f"Total time taken: {end_time - start_time:.2f} seconds")
    return blended_image

create_screws_CanvasAndLabel(mask_dir, label_path, number_generated_objects=30)

Create images with screws and YOLOv8 OBB labels.

Parameters:

Name	Type	Description	Default
mask_dir	str	Directory containing the mask images	required
label_path	str	Path to save the label file	required
number_generated_objects	int	Number of screws/nuts/washers to be placed in the new image	30

Returns: np.ndarray: The generated screw canvas.

Source code in image_creation.py

def create_screws_CanvasAndLabel(mask_dir, label_path, number_generated_objects=30):
    """Create images with screws and YOLOv8 OBB labels.

    Args:
        mask_dir (str): Directory containing the mask images
        label_path (str): Path to save the label file
        number_generated_objects (int): Number of screws/nuts/washers to be placed in the new image
    Returns:
        np.ndarray: The generated screw canvas.
    """
    # 1) Get mask image paths and names
    mask_paths = sorted(glob.glob(os.path.join(mask_dir, '*.png')))
    mask_names = [os.path.basename(path) for path in mask_paths]

    # 2) Create an empty RGB image of size 3076 x 1852
    canvas_h, canvas_w = 1852, 3076
    canvas = np.zeros((canvas_h, canvas_w, 3), dtype=np.uint8)

    # 3 & 4) Open label file once and write labels as we go
    with open(label_path, 'w') as f:
        num_masks = number_generated_objects
        chosen_indices = random.choices(range(len(mask_paths)), k=num_masks)

        for idx in chosen_indices:
            mask_path = mask_paths[idx]
            mask_name = mask_names[idx]
            mask = io.imread(mask_path)

            # Ensure mask is RGB
            if mask.ndim == 2:
                mask = np.stack([mask]*3, axis=-1)
            elif mask.shape[2] == 4:
                mask = mask[..., :3]

            # Random rotation
            angle = random.uniform(0, 360)
            rotated_mask = rotate(mask, angle, resize=True, preserve_range=True).astype(np.uint8)
            rot_h, rot_w, _ = rotated_mask.shape

            # Random position
            max_y = canvas_h - rot_h
            max_x = canvas_w - rot_w
            if max_y < 0 or max_x < 0:
                continue  # skip if mask doesn't fit

            rand_y = random.randint(0, max_y)
            rand_x = random.randint(0, max_x)

            # Place mask on canvas
            for c in range(3):
                canvas[rand_y:rand_y+rot_h, rand_x:rand_x+rot_w, c] = np.maximum(
                    canvas[rand_y:rand_y+rot_h, rand_x:rand_x+rot_w, c],
                    rotated_mask[..., c]
                )

            # ---- Label creation happens here ----
            mask_gray = color.rgb2gray(rotated_mask)
            mask_bin = mask_gray > 0.001
            mask_bin = np.pad(mask_bin, pad_width=3, mode='constant', constant_values=0)
            contours = find_contours(mask_bin, level=0.5)
            if not contours:
                continue

            contour = max(contours, key=lambda x: x.shape[0])
            poly = Polygon(contour[:, ::-1])  # (row, col) -> (x, y)
            if not poly.is_valid:
                poly = poly.buffer(0)
            min_rect = poly.minimum_rotated_rectangle
            x, y = min_rect.exterior.coords.xy
            obb_points = np.array(list(zip(x, y)))[:-1]  # drop duplicate last point

            # Shift to canvas position & normalize
            points_n = []
            for pt in obb_points:
                px = (pt[0] + rand_x) / canvas_w
                py = (pt[1] + rand_y) / canvas_h
                points_n.extend([px, py])

            class_name = mask_name.split('_')[0]
            line = f'{class_name} ' + ' '.join([str(x) for x in points_n])
            f.write(line + '\n')

    return canvas

display_obb_with_labels(image_path, label_path)

Reads an image and its corresponding YOLOv8 OBB label file, then displays the image with OBB bounding boxes and class names.

Parameters:

Name	Type	Description	Default
image_path	str	Path to the generated image.	required
label_path	str	Path to the label file in YOLOv8 OBB 8 points format.	required

Source code in image_creation.py

def display_obb_with_labels(image_path, label_path):
    """
    Reads an image and its corresponding YOLOv8 OBB label file,
    then displays the image with OBB bounding boxes and class names.

    Args:
        image_path (str): Path to the generated image.
        label_path (str): Path to the label file in YOLOv8 OBB 8 points format.
    """
    try:
        image = io.imread(image_path)
    except FileNotFoundError:
        print(f"Error: Image file not found at {image_path}")
        return

    canvas_h, canvas_w, _ = image.shape

    fig, ax = plt.subplots(figsize=(10, 6))
    ax.imshow(image)

    try:
        with open(label_path, 'r') as f:
            for line in f:
                parts = line.strip().split()
                class_name = parts[0]
                points_n = [float(x) for x in parts[1:]]

                # Ensure there are enough points for an OBB (8 points for 4 corners)
                if len(points_n) == 8:
                    points = np.array(points_n).reshape(4, 2)
                    points[:, 0] *= canvas_w
                    points[:, 1] *= canvas_h
                    poly = np.vstack([points, points[0]])  # Close the polygon

                    ax.plot(poly[:, 0], poly[:, 1], color='red', linewidth=2)
                    centroid = np.mean(points, axis=0)
                    ax.text(centroid[0], centroid[1], class_name, color='yellow', fontsize=12, ha='center', va='center')
                else:
                    print(f"Warning: Skipping malformed line in label file: {line.strip()}")
    except FileNotFoundError:
        print(f"Error: Label file not found at {label_path}")
        return
    except Exception as e:
        print(f"An error occurred while processing the label file: {e}")
        return

    plt.title('OBB Bounding Boxes with Class Names')
    plt.axis('off')
    plt.show()
    return
